Factors That Determine Duct System Performance

 One of the most crucial parts of an HVAC system is the duct system. The efficiency of duct systems is determined by ten elements, according to high-performing HVAC systems. The whole HVAC system may not provide the comfort and efficiency you promised your customer if one of these aspects is neglected. Let's examine how these variables affect the functioning of Duct fitting in Canberra systems and how you can make sure they are accurate.

Fan Capacity

The performance of the duct system begins with the indoor fan (blower). It establishes the maximum airflow that the duct system is capable of circulating. The fan cannot deliver the necessary system airflow if the duct is inadequate or improperly placed. You must consult the equipment's fan table to confirm that the fan is powerful enough to move the necessary system airflow. Engineering data or installation instructions from the manufacturer are usually where you can find this information. Refer to it to make sure the fan can get past the coil, filter, and duct system's airflow resistance or pressure drop. You'll be astonished at how much you can learn from knowledge about equipment engineering.

Indoor Coil and Air Filter

The indoor coil and air filter are the two essential parts of the system that a fan needs to circulate air through. Performance of the Duct fitting in Canberra is directly impacted by their airflow resistance. They can significantly limit airflow before it leaves the air-handling equipment if they are overly restrictive. With a little preparation, the likelihood of restrictive coils and filters can be decreased. Choose an indoor coil that offers the appropriate airflow at the lowest pressure drop when wet by consulting the manufacturer's coil information. Select air filters that accommodate the health and cleanliness needs of your customers while maintaining a low pressure drop and face velocity. I would like to recommend the "Filter Size Method" from the National Comfort Institute (NCI) to assist you in accurately sizing your filters. Send me an email requesting a PDF copy if you're interested.

Duct Design Methods

The foundation of a proper duct installation is proper duct design. If everything works as it should, the installed duct system should resemble this. The performance of the duct system (and the HVAC system as a whole) suffers from inappropriate airflow delivery if the design is flawed from the outset. Many people in our sector make the mistaken assumption that effective duct design equates to effective duct system performance. You must measure the actual airflow of the created system to confirm that your duct design method, whatever it may be, works. If the measured airflow is less than 10% of the design airflow, you may say with certainty that your duct design process is effective.

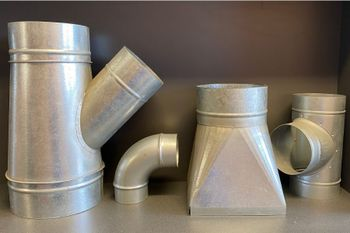

Duct Fitting Construction

Construction of duct fittings is another factor. High turbulence caused by improperly built duct fittings makes it more difficult for the fan to move air efficiently and increases the resistance it faces. Airflow turns should be gradual and smooth using duct fittings. Avoid making tight, sharp twists if you want your duct systems to operate more efficiently. Your decision-making process will be aided by a fast perusal of ACCA Manual D. The most effective air supply is made possible by fittings with the smallest matching lengths.

Duct Tightness

The fan-circulated air will remain inside the ducts with a tight duct system. Leaky ducts impair system functionality and result in a number of concerns, such as compromised IAQ and CO safety as well as reduced system capacity. All mechanical connections in a duct system should be sealed, to keep things straightforward. Mastic works well if the connection doesn't need to be altered, like a duct or pipe connection. Choose a readily removable sealant if the mechanical connection has a component behind it, such as an indoor coil, that may require service in the future. Avoid being the one to manipulate the access panels to the air-handling machinery.

Volume Dampers

You need a mechanism to manage the air after it is contained inside the ductwork. Volume dampers are necessary for a system to function properly since they let you adjust the direction of the airflow. Without volume dampers, air can move in the direction of least resistance. It's regrettable that many designers omit these accessories from many duct system setups because they believe they are superfluous. To balance airflow into and out of a room or area, it is best to put them in the supply and return duct branches.

Duct Insulation

We've just examined the air side up until this point. Another crucial performance issue for duct systems is temperature. A duct system without insulation is unable to provide the conditioned room with the necessary heating or cooling. To keep the temperature exiting the equipment close to what the client perceives at the supply register, duct insulation preserves air temperatures inside the ducts. A low R-value or improperly fitted insulation won't be able to stop temperature-related duct losses. If there is more than a 3°F temperature difference between equipment leaving temperature and the farthest supply register temperature, the ducts probably need more insulation.

Supply Registers and Return Grilles

Supply registers and return grilles are frequently overlooked components of effective duct system. Designers frequently choose the cheapest registers and grilles. Contrary to popular belief, they provide far more functions than simply masking the rough supply and return duct openings. The volume of conditioned air that is delivered and blended into a place is controlled by supply registers. Return grilles are significant from a noise perspective even though they have no effect on air flow. Watch out for them singing or humming while the fan is running. Choose registers that best suit the airflow and room you're trying to condition by consulting the grille manufacturer's information.

Installation Techniques

How properly the ducts are installed is the main factor affecting the performance of the duct system. If a system isn't installed properly, it will fail horribly. Correct installation techniques are ensured by paying close attention to the tiny things and doing a little planning. Guys are amazed by the amount of airflow that can be obtained from a flexible duct by simply removing extra core and kinks and adding suspension. Instead of blaming the installation process that was employed, the natural reaction is to blame the product. This brings up to the tenth factor.

Verification

It must be validated to ensure proper duct system design and installation. This is accomplished by contrasting design data with data collected upon system installation. The change in Duct fitting in Canberra temperature and the individual room airflow into the conditioned space are two critical measurements that you must take. Use these to calculate the delivered Btu into the building and confirm that the design requirements are being met. You'll probably end up paying for it if you rely on your design methods and assume the system works as it should. Calculations for equipment selection, heat loss/gain, and duct design should not be removed from their right context because they were never intended to guarantee performance. Instead, utilize them as a benchmark for the field measurements of your deployed system.
